240 Series Input Modules

240 Series cryogenic temperature modules

240 Series Features

Two or eight cryogenic temperature sensor inputs
Supports industry-leading Lake Shore Cernox®, platinum, and other RTDs, plus DT-670 diodes
Precision measurement circuitry with on-board conversion to calibrated temperature units
Monitor temperatures down to 1 K and up to 800 K
Current reversal to minimize thermoelectric offsets
Front-mounted OLED screen for temperature and status reporting
Fully configurable through direct USB connection
PROFIBUS-DP communication integrates with distributed PLC-based control architectures

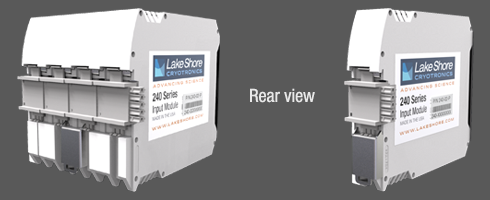

Easy DIN rail mounting with integrated rear connections for shared power and network

Simplifying large-scale cryogenic temperature measurement

The new 240 Series offers a convenient, modular input solution for precision monitoring of cryogenic temperature sensors in large-scale applications employing distributed PLC-based control.

Lake Shore benchtop cryogenic instruments are trusted throughout the world for precision temperature measurement—now that same measurement performance can be achieved in widely distributed high energy applications like particle accelerators and fusion reactors as well as other large industrial sites.

		Integrates seamlessly with industry-leading Lake Shore Cernox^® RTDs, platinum RTDs and DT 670 silicon diodes, providing the ideal solution for performing temperature measurements over a PLC network

		Native support for PROFIBUS, allowing this module to be integrated into a wide range of PLC networks

		Temperature values are communicated directly with the PLC master device, removing the need to use additional costly analog conversion equipment or complex PLC programming to generate temperature values

		Measurement circuitry based on Lake Shore’s industry leading benchtop instruments, allowing for longer cable runs between sensor and module; ideal for applications where sensors must be located in hazardous environments

		Normal mode with EMF-cancellation and signal filtering for the best measurement possible or high-speed mode for the fastest notification of a temperature change

		A high-quality OLED display on the front of the unit provides helpful status and measurement data; this is in addition to being able to access this information via the PLC network or the local USB connection

		Convenient pluggable connectors allow individual sensors to be disconnected for maintenance without losing readings from other sensors on the same module

		Easy DIN rail mounting with integrated rear connections allowing power and fieldbus communications to be shared between modules
