Electromagnets and accessories

• Indexed pole gap settings (ExactGAP™) allow repeatable air gap changes without having to re-calibrate between changes
• Exceptional field intensities achieved with cylindrical or tapered pole caps
• Water-cooled coils provide excellent field stability and uniformity
• Removable pole caps facilitate variable pole face configurations and easy pole cap exchange
• Accurate pole alignment by precise construction of the air gap adjustment mechanism
• The EM-4V/EM-7V yoke designed for optimum air gap accessibility for both top and bottom of the magnet
• Compact size of the EM-4V permits convenient bench-top mounting
• Optional optical access pole caps available

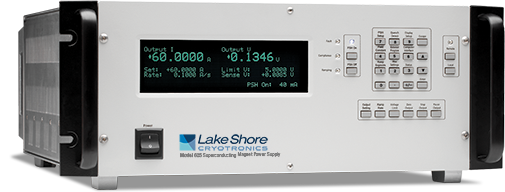

Model 625 Features

• 60 A/5 V, bipolar, true 4-quadrant output
• 0.1 mA output setting resolution
• Linear regulation minimizes noise
• Ripple = 0.007% of maximum current (into a 1 mΩ load)
• 1 mA per hour stability
• Parallel operation to ±120 A

Model 643 Features

• Bipolar, linear, true 4-quadrant output
• ±70 A/±35 V, 2.5 kW
• Can be modulated to frequencies up to 0.17 Hz at ±70 A
• Low noise
• 0.1 mA of programmed current resolution
• Analog programming and IEEE-488 and RS-232C interfaces
• Built-in fault protection
• Compact design

Model 648 Features

• ​Bipolar, linear, 4-quadrant output
• ±135 A/±75 V, 9.1 kW
• Low noise
• 1 mA of programmed current resolution
• Analog programming and IEEE-488 and USB interfaces
• Built-in fault protection
