Chart Recorder

Chart recorder

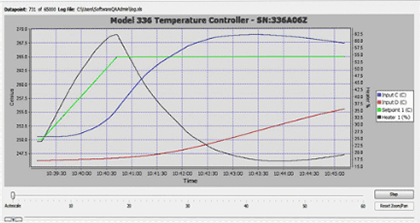

The Lake Shore Chart Recorder is a general charting and logging software tool designed to work with several Lake Shore temperature instruments via USB, serial, GPIB, or Ethernet.

Version: 1.1.6
Publisher: Lake Shore Cryotronics, Inc.

Supported operating systems: Windows Vista and newer
Supported instruments: Model 218, Model 224, Model 331; Model 332, Model 325, Model 335, Model 336, Model 350, Model 370, and Model 372

Click to launch and install via Java Web Start:

Install



The following prerequisites are required:

Download the Java executable (JAR) file directly

NOTE: When using GPIB, Java only works in 32-bit.

Installing issues

If the application does not install and place shortcuts on your desktop when you launch, you can do the following:

  1. Open the Windows Control Panel > Java
  2. Under the General tab, under Temporary Internet Files, click View…
  3. Select Applications from the Show drop-down box
  4. Right click the Lake Shore Chart Recorder application, and select Install Shortcuts

Java cache viewer


Display issues

If you are using a high resolution device and having display issues, you will need to change the properties of your java.exe, javaw.exe, and jp2launcher.exe files.

Right click and go to Properties> Compatibility> Settings of each of the three files and check the Override High DPI Scaling Behavior box, changing the drop-down underneath to System.


Java files properties settings
