Sample Holders and Kits

Lake Shore provides sample rod assemblies for room, cryogenic, and high temperature applications. The assemblies are available as permanently mounted integrated sample tail/holders or with threaded ends that allow holders to be interchanged. Sample holders for thin films, bulk materials, powders, and liquids are available.

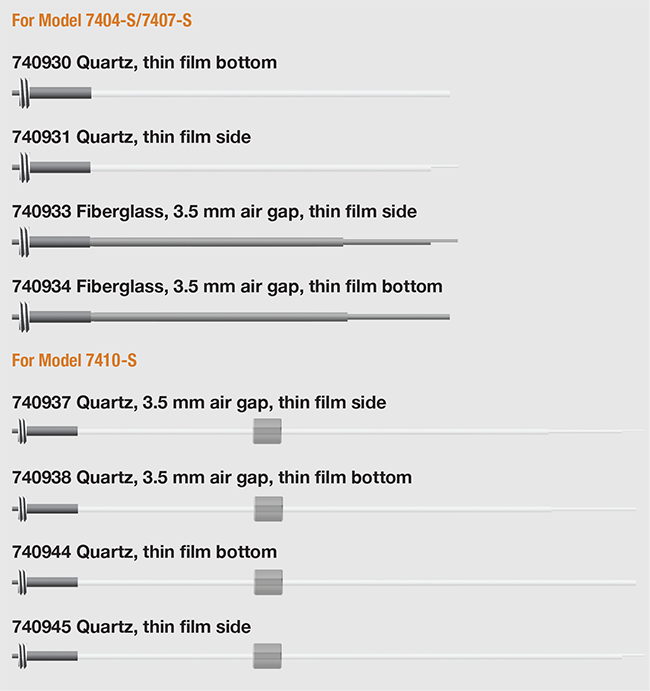

Integrated sample tail/holders


VSM sample tail holders

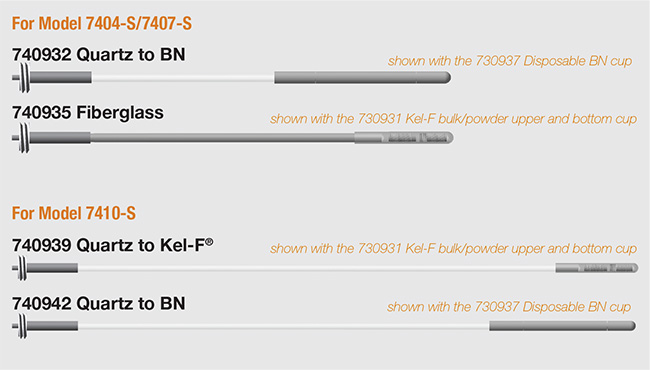

Sample tails

VSM sample tails

730931 Kel-F bulk/powder upper/bottom cup

730931

730933 Kel-F thin film side

730933

730934 Kel-F thin film bottom

730934

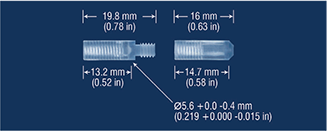

730935 Kel-F liquid upper and bottom cup

730935

730937 Disposable BN cup

730937

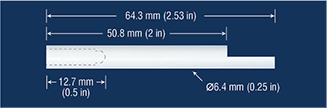

730938 BN thin film side

730938

730939 BN thin film bottom

730939

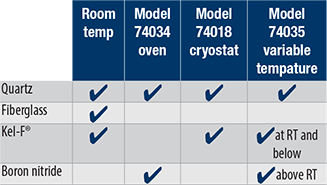

Recommended temperature usage

VSM sample holder temp

The following charts show which sample kits are included standard with different VSM system configurations.

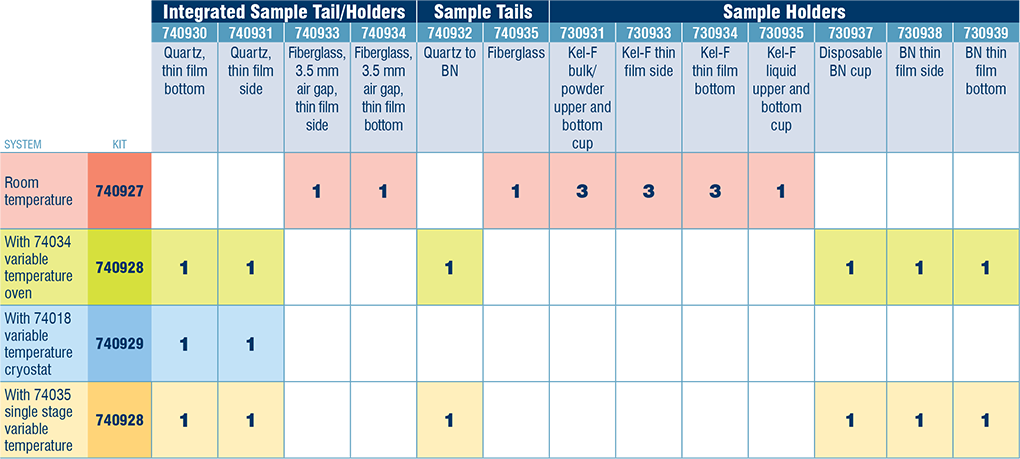

7404-S and 7407-S system sample kits

VSM sample kits 4 7

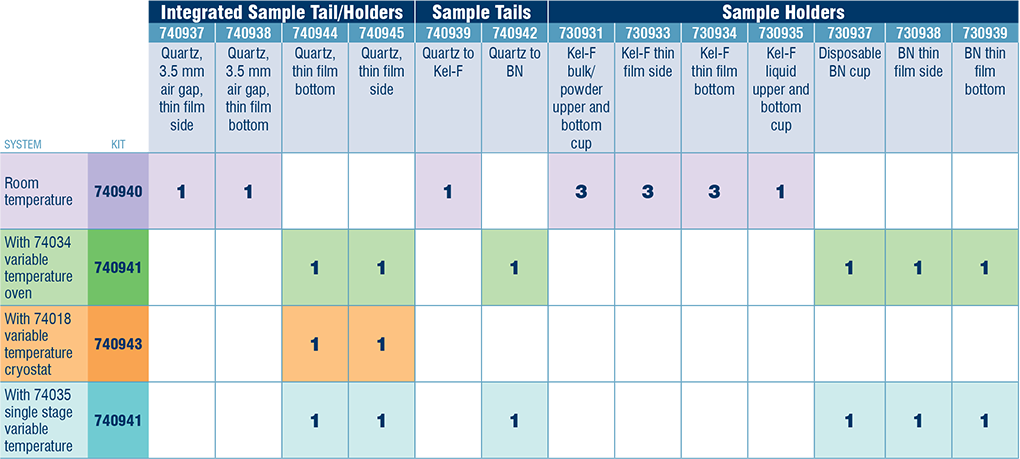

7410-S system sample kits

VSM sample kits 10
