Hall Effect Systems

FastHall measurement capability contained in a complete characterization platform

The MeasureReady™ M91 FastHall™ measurement controller is a revolutionary, all-in-one Hall analysis instrument that delivers significantly higher levels of precision, speed, and convenience to researchers involved in the study of electronic materials.

And now this novel capability is available as part of the FastHall Station, an integrated, high-precision tabletop measurement system for simplified Hall measurements and less experimental setup.

The FastHall Station includes a Windows® 10 PC, 1 T permanent magnet, high precision sample holder, and all the necessary software and cabling to provide a range of measurement capabilities including sample resistances up to 1 GΩ and mobility measurements down to 0.01 cm2/V s ­— making it a great choice for labs studying low-mobility materials.



blue check mark

Widest measurement range

  • Proprietary FastHall™ technology enables low-mobility measurements without field reversal in seconds
  • Mobility measurements down to 0.01 cm2/V s for van der Pauw samples with resistances from 10 mΩ to 1 GΩ
  • Completely guarded triaxial cabling to fully shielded, insertable, light-tight sample chamber plus an LN2 option

blue check mark

Completely integrated mini-system solution

  • MeasureLINK™-MCS software provides standard sequences, charts, exportable reports and user customizable test scripts
  • M91 FastHall™ instrument with high resistance option integrates all signal source, measure, and switching functions
  • Easy to use spring pin and solder sample holder cards accommodate up to 10 mm × 10 mm van der Pauw and Hall bar type samples

blue check mark

Increased productivity and flexibility

  • Measurement times greatly reduced through patented FastHall™ method and fully integrated system solution
  • Available gate bias instrument option and ability to easily integrate third-party sources and instruments
  • Simple, repeatable, and reversible permanent magnet with nominal fields of 1 T and optional 0.8 T for LN2 chamber

ORDER NOW

A new approach to Hall measurement

The MeasureReady M91 is a revolutionary, all‑in-one Hall analysis instrument that delivers significantly higher levels of precision, speed, and convenience to researchers involved in the study of electronic materials.

Featuring Lake Shore’s patented* new FastHall measurement technique, the M91 fundamentally changes the way the Hall effect is measured by eliminating the need to switch the polarity of the applied magnetic field during the measurement. This breakthrough results in faster and more accurate measurements, especially when using high field superconducting magnets or when measuring very low mobility materials.

*Protected by US patent number 9797965. Other patents pending.



blue check mark

Simpler and more convenient

  • All-in-one instrument
  • Automatically selects optimal excitation and measurement levels
  • Automatically executes measurement steps
  • Provides complete Hall analysis
  • Easy to use, easy to integrate with existing lab systems

blue check mark

Makes better measurements, faster

  • No need to reverse the magnetic field with FastHall
  • Up to 100× faster for low mobility materials
  • Improves accuracy by minimizing thermal drift

blue check mark

Cost effective

  • Build a new Hall system or upgrade an existing one
  • Add state-of-the-art Hall measurement capability to any lab
  • Use with any type of magnet

Features of the 8400 Series

  • Ideal for variable temperature measurement and mobilities from 1 to 106 cm2/V s
  • Optional AC field extends mobility measurement range down to 10-3 cm2/V s
  • Maximum DC fields to 1.67 T (8404) and 2.25 T (8407)
  • Optional AC fields to 1.18 T (8404) and 1.31 T (8407)
  • Standard resistance range of 0.5 mΩ to 10 MΩ
  • High resistance option widens range to 200 GΩ
  • Low resistance option significantly reduces resistance noise floor
  • Temperatures from 15 K to 1273 K

Features of the Model 8425

  • A complete Hall effect measurement system using device probing under vacuum in a probe station
  • Supports a range of DC field Hall measurements—measure mobility on wafer-scale materials and structures as a function of temperature and field
  • DC fields to 2 T and resistances from 0.5 mΩ to 100 GΩ
  • Vary temperatures from 10 K to 400 K using closed-cycle refrigerator—no cryogen required
  • Includes intuitive 8400 Series software for easy system operation, data acquisition, and analysis
  • Supports exporting of data for multi-carrier analysis
  • 3-year standard warranty

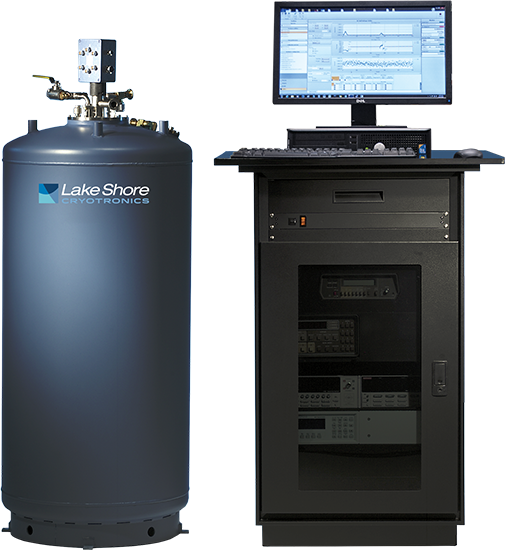

Features of the Model 9700A

  • Standard sample resistance ranges from 0.04 mΩ to 200 GΩ
  • Fields to 9 T
  • Temperatures from 2 K to 400 K
  • Quantitative Mobility Spectrum Analysis (QMSA®) software resolves individual carrier mobilities and densities in multi-carrier devices
  • Anomalous Hall Effect measurements for spintronics including dilute magnetic semiconductors and ferromagnetic metallic alloys
