Helmholtz and Search Coils

Features of Helmholtz Coils (Field Standards)

  • Standard field coil (field generation)
  • Field strengths from ≈12 G to ≈30 G
  • Field accuracy of 0.5%
  • Field uniformity of 0.5%*
  • Single axis configuration with 2.5 in, 6 in, and 12 in diameter coils

*Model dependent, see technical specifications

Features of Helmholtz Coils (Magnet Moment Measurement)

  • Inspection and research of magnets (measure moment)
  • Calibration accuracy of 0.5%
  • Single and 2-axis configurations with 2.5 in, 6 in and 12 in diameter coils
  • Use with Model 480 Fluxmeter only

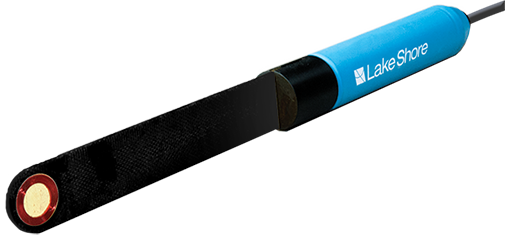

Features of Search Coils

  • Inspection and research of magnets (narrow gaps or field gradients)
  • Calibration accuracy of 0.25% or 0.35%*
  • Offered in 100 cm2 and a 30 cm2 area-turn configurations
  • Use with Model 480 fluxmeter only

*Model dependent, see technical specifications
